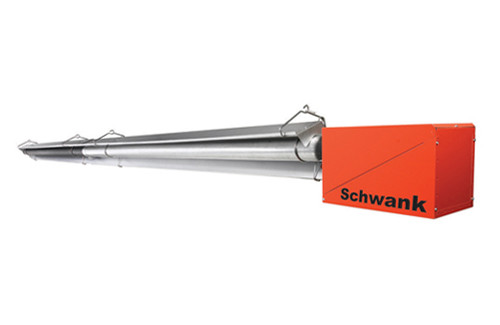

builderSchwank Tube Heater: 175,000 Btuh LP; 60 FT; USA
builderSchwank Tube Heater: 175,000 Btuh LP; 60 FT; USA

builderSchwank Tube Heater: 175,000 Btuh LP; 60 FT; USA

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-S100-175-60-AL
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

Single-Stage positive pressure series gas fired infrared tube heater, 175 MBH, liquid propane, 60 ft tube, 120V/1Ø
Specifications
Model S121
Model Number S100-175-60-AL
Application indoor commercial and industrial applications
Motor Housing: The clam shell, provides access from the 2 sides, end, and bottom. Head: Incorporates effective ceramic burner head with minimum 835 flame ports.
Capacity Input (Btu/h) 175000
Length 60’
Fuel LP **
Fuel Specification **Burner can be order LP
Operating Mode Single-Stage
Burner Kit # JS-E175-BL
Tube Kit 1 # TM-1030-SX
Tube Kit 2 # TM-0030-SX
Certificates UL Certification.
Transformer 120/24VAC; 20VA
Gas Valve Honeywell 24 Volt. Natural Gas: 3 1/2” W.C. Manifold Propane: 10” W.C. Manifold.
Turbulator Length & Location 40” + 72”
Line Pressure NG/LP Line minimum: 5" W.C NG 11" W.C LP Line Maximum: NG or LP 14" W.C
Flue & Air Vents 4"
Shipping Weight (lbs) 180
Features All burner assemblied powered by hard wired 120V line voltage. Wire hangers allow flecible positioning along the system. Birdscreened combustion air collar, 4" to allow for sealed combustion. Flexible gas connector included.
Warranty Information
5-year tube & burner cup, 2-year components.
!
