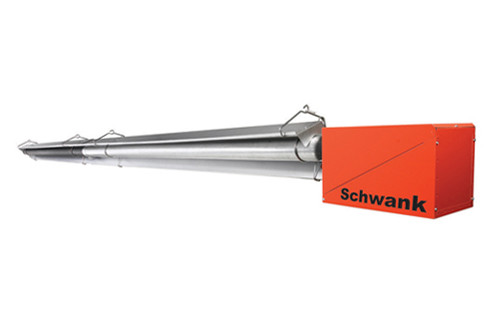

builderSchwank 'U'-Tube Heater: 110,000 Btuh LP; 20 FT; USA
builderSchwank 'U'-Tube Heater: 110,000 Btuh LP; 20 FT; USA

builderSchwank 'U'-Tube Heater: 110,000 Btuh LP; 20 FT; USA

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-S100U-110-20-AL
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

20 ft liquid propane single-stage U-Tube system, 110 MBH input capacity, 120V/1Ø.
Specifications
Model S100U
Model Number S100U-110-20-AL
Application indoor or commercial and industrial applications
Motor Housing: The clam shell, provides access from the 2 sides, end, and bottom. Head: Incorporates effective ceramic burner head with minimum 835 flame ports.
Voltage (phase) 120 (1Ø)
Capacity Input (Btu/h) 110000
Length 20’U = 2 x 20’
Fuel LP**
Fuel Specification **Burner can be order LP
Operating Mode Single-Stage
Burner Kit # JS-E110-BL
Tube Kit 1 # TM-1020-SU
Tube Kit 2 # -
Certificates UL Certification.
Transformer 120/24VAC; 20VA
Gas Valve Honeywell 24 Volt. Natural Gas: 3 1/2” W.C. Manifold Propane: 10” W.C. Manifold.
Turbulator Length & Location 24” + 96”
Line Pressure NG/LP Line minimum: 5" W.C NG 11" W.C LP Line Maximum: NG or LP 14" W.C
Flue & Air Vents 4"
Shipping Weight (lbs) 150
Features 180° turn box (elbow) included in the primary tube Kit. Emissive coating on radiant tubes. Beam hangers allow flexible positioning along with the system. All burner assemblies powered by hard wired 120V line voltage. Birdscreened Combustion...
Warranty Information
5-year tube, 5-year burner cup, 2-year components
!
