Description

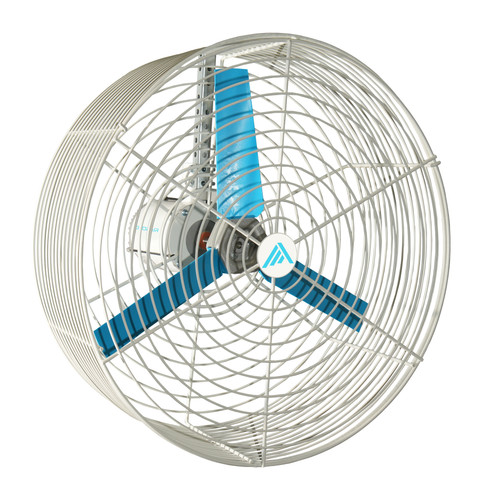

Permanent Magnet EC Technology (120/230V) EC HAF Fan; 1/3 HP; 3 Year Warranty; 3 Blade
| Model | Chop24 |
| RPM (Max) | 1800 |
| RPM (Min) | 200 |
| Voltage (V) | 120 / 208 |
| Application | Industrial + |
| Rated Frequency (Hz) | 50/60 |
| Country of Origin | US |
| Frame | N48 Steel |
| Blade Diameter (in) | 24 |
| CFM (Free Air) @ Top Speed | 10261 |
| CFM Calculation | ANSI/AMCA 230-99 |
| CFM/watt (Thrust) (avg / variable) | 23.4 |
| Power (HP) | 0.63 |
| Nameplate Amps 1 | 9.6 |
| Nameplate Amps 2 | 6.2 |
| Nameplate Amps 3 | 5.1 |
