duraSchwank S/S Burner Housing Tube Heater: 80,000 Btuh NG; 40 FT; USA
duraSchwank S/S Burner Housing Tube Heater: 80,000 Btuh NG; 40 FT; USA

duraSchwank S/S Burner Housing Tube Heater: 80,000 Btuh NG; 40 FT; USA

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-STW-80-40-AN
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

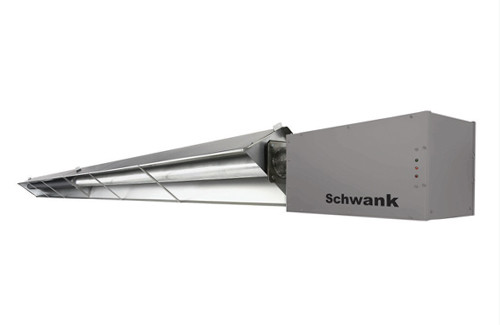

Outdoor, Car Wash & Harsh Environment Low-Intensity Single-Stage Gas-Fired Infrared Tube Heater, 80 MBH, natural gas, 40 ft.
Specifications
Model STW
Model Number STW-80-40-AN
Motor Stainless Steel Water Resistant. Complete with operation status indicator lights. Potted direct spark ignition. Housing: The "Clamshell Design" provides access from the 2 sides, end, and bottom.
Voltage (phase) 120 (1Ø)
Capacity Input (Btu/h) 80000
Length 40’
Fuel NG*
Fuel Specification *Field conversion kit required for LP fuel.
Operating Mode Single-Stage
Burner Kit # JS-080P-BN
Tube Kit 1 # TW-1040-JZ
Tube Kit 2 # -
Certificates UL Certification. ANSI Z83.26 / CSA 2.37 Standard for gas-fired Outdoor Infrared Patio Heaters. ANSI Z83.20 / CSA 2.34 Standard for Gas-Fired Low-Intensity Infrared Heaters.
Gas Valve Flexible gas connector is included with each burner kit. 1/2” X 24” 45,000 TO 130,000 AND 3/4” X 24” = 150,000 TO 200,005
Turbulator Length & Location 24” + 109”
Line Pressure NG/LP Line Max: NG or LP 14" W.C. Line Min: 5" W.C NG 11" W.C LP
Flue & Air Vents 4"
Shipping Weight (lbs) 197
Features Fresh air adapter and cap for outside combustion air. Moisture resistant spark ignition package. Tough, durable finish. Whisper Quiet Ceramic Burner. Birdscreened 4" combustion air collar and intake wall hood. Flexibile system configuration...
!
