Description

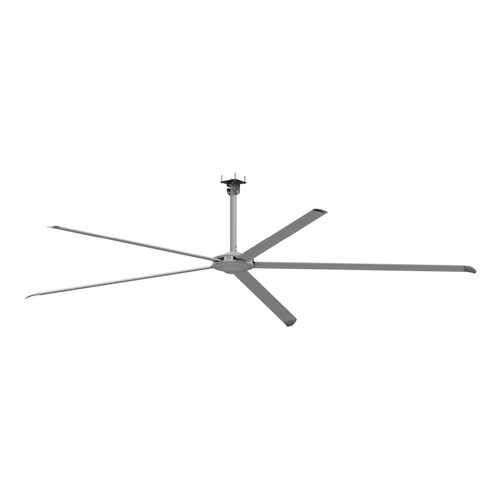

Commercial HVLS Fan; Direct Drive Motor; 0.43 kW; Equivalent 5 Airfoils; NEMA 1 VFD Assembly; Blade Attachment Retainers; 10-Year Mechanical Warranty; 5-Year Electrical Warranty; 1-Year Controls Warranty; 1-Year Labor Warranty; UL Listed; AMCA Certified
| Model | Apex |
| Model Number | ECF10-05 |
| Fan Type | Commercial HVLS Fan |
| Diameter (ft) | 10 |
| Hanging Weight (lbs) | 59 |
| Hanging Weight (kg) | 26.8 |
| Powerhead Assembly | 50,000 lbs. Yield High Tensile Steel |
| Blades | 6063-T6 Aluminum, Powder coated |
| Blade End Winglets | 6061-T6 Aluminum, Powder coated |
| Mounting Hardware | Versatile 45° Mounting Bracket |
| Additional Drop Extensions (Optional) | Up to 15 ft in 1 ft Increments |
| Standard Drop (in) | 18 |
| Gearbox | Direct Drive Motor |
| Airfoils | Equivalent 5 Airfoils |
| Wiring | NEMA 1 VFD Assembly |
| Safety | Blade Attachment Retainers |
| Listing | UL Listed |
| Certification | AMCA Certified |
| Motor Housing | .050 3003 Aluminum, Powder coated |
| Blade Attachment Retainers | 50,000 lbs Yield High Tensile Steel |
| Touch Screen Panel Width (in) | 3 |
| Touch Screen Panel Width (mm) | 76.2 |
| Touch Screen Panel Height (in) | 4.625 |
| Touch Screen Panel Height (mm) | 117.48 |
| Powerhead Bracket Drop (in) | 18 |
| Powerhead Bracket Drop (mm) | 457.2 |
| Motor Powerhead Drop (in) | 6 |
| Motor Powerhead Drop (mm) | 152.4 |
| VFD Panel Length (in) | 5.5 |
| VFD Panel Length (mm) | 139.7 |
| VFD Panel Depth (in) | 5.5 |
| VFD Panel Height (in) | 9.25 |
| VFD Panel Height (mm) | 234.95 |
| VFD Panel Depth (mm) | 139.7 |
| Input Voltage | 100V-120V , 1Ø, 50/60HZ |
| System FLA | 4.13A @ 120V, 1Ø, 60HZ |
| Motor Size (kW) | 0.43 |
| Motor Size (HP) | 0.58 |
| Motor Voltage | 127V, 60 HZ |
| Motor FLA (A) | 3.3 |
| MCA* (A) | 21 |
| BCPD (A) | 25 |
| (@100%) - Fan RPM | 110 |
| (@100%) - CFM *Tested to ANSI/AMCA Standard 230-15 HVLS* | 36242 |
| (@100% - Large Diameter Ceiling Fan - Ceiling Fan Energy Index (CFEI) | 1.6 |
| (@100%) - Standby Power (W) | 6 |
| (@100%) - Electrical Input Power (W) at Standard Air Density | 246 |
| Direction | Forward |
| Reversible | Yes |
| RPM | 110 |
| Mechanical (Yrs) | 10 |
| Electrical (Yrs) | 5 |
| Labor (Yrs) | 1 |
| Standard Remote (Yrs) | 1 |
| iFan Controls (Yrs) | 1 |
| BMS Interface Card (Yrs) | 1 |
| Accessory Sensors (Yrs) | 1 |
| Application | N/A |
| Voltage (V) | 100V-120V , 1Ø, 50/60HZ |
| Document Name | Download URL |
|---|---|
| Specification Sheet | View Document |
| Installation and Operation Manual | View Document |
| Quick Install Guide | View Document |
| Brochure | View Document |
10-Year Mechanical Warranty; 5-Year Electrical Warranty; 1-Year Controls Warranty; 1-Year Labor Warranty
