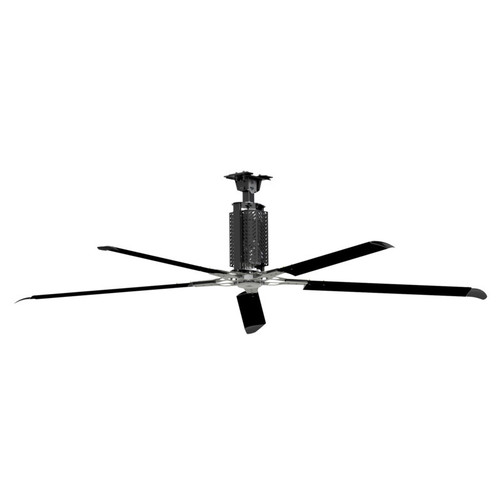

Industrial HVLS Fan; 2-Stage Helical Gearbox; 2.0 HP; 5 Airfoils; NEMA 1 Disconnect/VFD Assembly; Safety Cable & Guy Wires; Lifetime Parts Warranty; 15-Year Mechanical Warranty; 7-Year Electrical Warranty 1-Year Controls Warranty 1-Year Labor Warranty; UL Listed; AMCA Certified
| Model | Colossus |
| Model Number | EF24-205 |
| Fan Type | HVLS |
| Diameter (ft) | 24 |
| Hanging Weight (lbs) | 231 |
| Hanging Weight (kg) | 107 |
| Normal Industrial Spacing (ft) | 110 |
| Powerhead Assembly | 6061-T6 Aluminum |
| Blade Struts (Invertible) | Clear Zinc / High Tensile Steel |
| Blades | Anodized / 6063-T6 Aluminum |
| Blade End Winglets | Aluminum 3003-H14 |
| Mounting Hardware | Universal I-Beam Clamp w/ Swivel Joint & 7” Drop |
| Additional Drop Extensions (Optional) | Up to 10 ft in 1 ft Increments |
| Standard Drop (in) | 36 |
| Safety Cable | Galvanized 1/4” x 7 x 19 Steel Aircraft Grade Cable |
| Guy Wires | Galvanized 1/8” x 7 x 19 Steel Aircraft Grade Cable |
| Rotor Retaining Ring | Zinc Plated / 3/16 A569 Steel |
| Gearbox | 2-Stage Helical Gearbox |
| Airfoils | 5 Airfoils |
| Wiring | NEMA 1 Disconnect/VFD Assembly |
| Safety | Safety Cable & Guy Wires |
| Listing | UL Listed |
| Certification | AMCA Certified |
| Touch Screen Panel Width (in) | 3 |
| Touch Screen Panel Width (mm) | 76 |
| Touch Screen Panel Height (in) | 4.625 |
| Touch Screen Panel Height (mm) | 118 |
| Powerhead Bracket Drop (in) | 7 |
| Powerhead Bracket Drop (mm) | 177 |
| Motor Powerhead Drop (in) | 29 |
| Motor Powerhead Drop (mm) | 736 |
| VFD Panel Length (in) | 12 |
| VFD Panel Length (mm) | 305 |
| VFD Panel Depth (in) | 8.25 |
| VFD Panel Height (in) | 14 |
| VFD Panel Height (mm) | 356 |
| VFD Panel Depth (mm) | 210 |
| Input Voltage | 360V-480V, 3Ø, 50/60 HZ |
| System FLA | 3.4A @ 460V, 3Ø, 60HZ |
| Fuse | KTKR10 |
| Motor Size (kW) | 1.49 |
| Motor Size (HP) | 2.0 |
| Motor Voltage | 460V, 60 HZ |
| Motor FLA (A) | 2.72 |
| MCA* (A) | 7.38 |
| (@100%) - Fan RPM | 59 |
| (@100%) - CFM *Tested to ANSI/AMCA Standard 230-15 HVLS* | 245291 |
| Direction | Forward |
| Reversible | Yes |
| RPM | 60 |
| Mechanical (Yrs) | 15 |
| Electrical (Yrs) | 7 |
| Labor (Yrs) | 1 |
| Standard Remote (Yrs) | 1 |
| iFan Controls (Yrs) | 1 |
| BMS Interface Card (Yrs) | 1 |
| Accessory Sensors (Yrs) | 1 |
| Application | N/A |
| Voltage (V) | 360V-480V, 3Ø, 50/60 HZ |
| Frame | Black Powder Coat / Welded Steel Fabrication |
| Document Name | Download URL |
|---|---|
| Specification Sheet | View Document |
| Installation and Operation Manual | View Document |
| Quick Install Guide | View Document |
| Brochure | View Document |
