Description

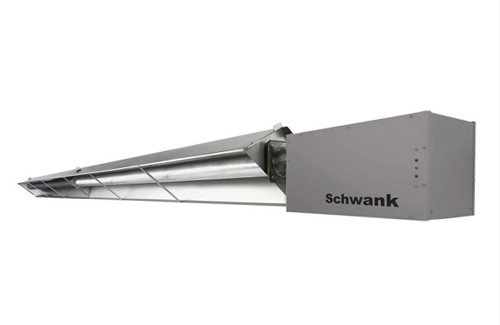

Outdoor, Car Wash & Harsh Environment 304 Grade Stainless Steel Series Low-Intensity Single-Stage Gas-Fired Infrared Tube Heater, 60 MBH, natural gas, 30 ft.
Specifications
Model STWS
Model Number STWS-60-30-AN
Motor 305 Grade Stainless Steel weather proof with two side access panels Complete with operation status indicator lights. Potted direct spark ignition.
Voltage (phase) 120V (1Ø)
Capacity Input (Btu/h) 60000
Length 30’
Fuel NG*
Fuel Specification *Field conversion kit required for LP fuel.
Operating Mode Single-Stage
Burner Kit # JS-060P-BN
Tube Kit 1 # TW-1430-JZ-2
Tube Kit 2 # -
Certificates UL Certification. ANSI Z83.26 / CSA 2.37 Standard for gas-fired Outdoor Infrared Patio Heaters. ANSI Z83.20 / CSA 2.34 Standard for Gas-Fired Low-Intensity Infrared Heaters.
Gas Valve Flexible gas connector is included with each burner kit. 1/2” X 24” 45,000 TO 130,000 AND 3/4” X 24” = 150,000 TO 200,001
Turbulator Length & Location 96”
Line Pressure NG/LP Line Max: NG or LP 14" W.C. Line Min: 5" W.C NG 11" W.C LP
Flue & Air Vents 4"
Shipping Weight (lbs) 162
Features Stainless steel weather tight cabinet and stainless steel reflectors and rubes. Fresh air adapter and cap for outside combustion air. Moisture resistant spark ignition package. Tough, durable finish. Whisper Quiet Ceramic Burner. Flexible s...
Warranty Information
10-year tube, 10-year burner cup, 3-year components
!
