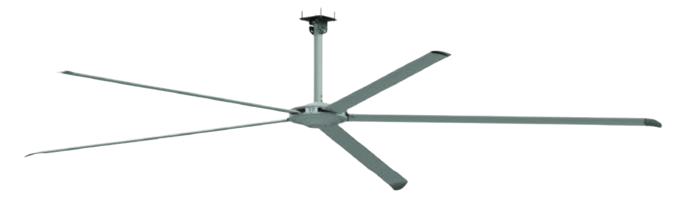

Epic Fans Apex

Epic Fans Apex is the pinnacle of commercial airflow performance. Engineered for large spaces, the Apex model combines cutting-edge motor technology with ultra-efficient blade design to deliver maximum air movement with minimal energy use. Ideal for warehouses, gyms, and commercial facilities, it offers quiet operation, low maintenance, and superior coverage—making it the ultimate solution for climate control and comfort.

  Name Brand Model Model Number Diameter (ft) Fan Type Input Voltage Motor Size (HP) Motor Voltage (@100%) - Fan RPM RPM SKU Price
View Epic Apex - 6 ft (100-120V/1Ø)   Epic Fans Apex ECF06-05 6 Commercial HVLS Fan 100V-120V , 1Ø, 50/60HZ 0.58 127V, 60 HZ 200 180 EPIC-ACF-06-11
View Epic Apex - 6 ft (200-240V/1Ø)   Epic Fans Apex ECF06-05 6 Commercial HVLS Fan 200V-240V, 1Ø, 50/60HZ 0.58 127V, 60 HZ 200 180 EPIC-ACF-06-21
View Epic Apex - 6 ft (200-240V/3Ø)   Epic Fans Apex ECF06-05 6 Commercial HVLS Fan 200V-240V, 3Ø, 50/60HZ 0.58 127V, 60 HZ 200 180 EPIC-ACF-06-23
View Epic Apex - 8 ft (100-120V/1Ø)   Epic Fans Apex ECF08-05 8 Commercial HVLS Fan 100V-120V , 1Ø, 50/60HZ 0.58 127V, 60 HZ 153 155 EPIC-ACF-08-11
View Epic Apex - 8 ft (200-240V/1Ø)   Epic Fans Apex ECF08-05 8 Commercial HVLS Fan 200V-240V, 1Ø, 50/60HZ 0.58 127V, 60 HZ 153 155 EPIC-ACF-08-21
View Epic Apex - 8 ft (200-240V/3Ø)   Epic Fans Apex ECF08-05 8 Commercial HVLS Fan 200V-240V, 3Ø, 50/60HZ 0.58 127V, 60 HZ 153 155 EPIC-ACF-08-23
View Epic Apex - 10 ft (100-120V/1Ø)   Epic Fans Apex ECF10-05 10 Commercial HVLS Fan 100V-120V , 1Ø, 50/60HZ 0.58 127V, 60 HZ 110 110 EPIC-ACF-10-11
View Epic Apex - 10 ft (200-240V/1Ø)   Epic Fans Apex ECF10-05 10 Commercial HVLS Fan 200V-240V, 1Ø, 50/60HZ 0.58 127V, 60 HZ 110 110 EPIC-ACF-10-21
View Epic Apex - 10 ft (200-240V/3Ø)   Epic Fans Apex ECF10-05 10 Commercial HVLS Fan 200V-240V, 3Ø, 50/60HZ 0.58 127V, 60 HZ 110 110 EPIC-ACF-10-23
View Epic Apex - 12 ft (100-120V/1Ø)   Epic Fans Apex ECF12-05 12 Commercial HVLS Fan 100V-120V , 1Ø, 50/60HZ 0.58 127V, 60 HZ 80 80 EPIC-ACF-12-11
View Epic Apex - 12 ft (200-240V/1Ø)   Epic Fans Apex ECF12-05 12 Commercial HVLS Fan 200V-240V, 1Ø, 50/60HZ 0.58 127V, 60 HZ 80 80 EPIC-ACF-12-21
View Epic Apex - 12 ft (200-240V/3Ø)   Epic Fans Apex ECF12-05 12 Commercial HVLS Fan 200V-240V, 3Ø, 50/60HZ 0.58 127V, 60 HZ 80 80 EPIC-ACF-12-23
View Epic Apex - 14 ft (100-120V/1Ø)   Epic Fans Apex ECF14-05 14 Commercial HVLS Fan 100V-120V , 1Ø, 50/60HZ 0.58 127V, 60 HZ 60 60 EPIC-ACF-14-11
View Epic Apex - 14 ft (200-240V/1Ø)   Epic Fans Apex ECF14-05 14 Commercial HVLS Fan 200V-240V, 1Ø, 50/60HZ 0.58 127V, 60 HZ 60 60 EPIC-ACF-14-21
View Epic Apex - 14 ft (200-240V/3Ø)   Epic Fans Apex ECF14-05 14 Commercial HVLS Fan 200V-240V, 3Ø, 50/60HZ 0.58 127V, 60 HZ 60 60 EPIC-ACF-14-23
