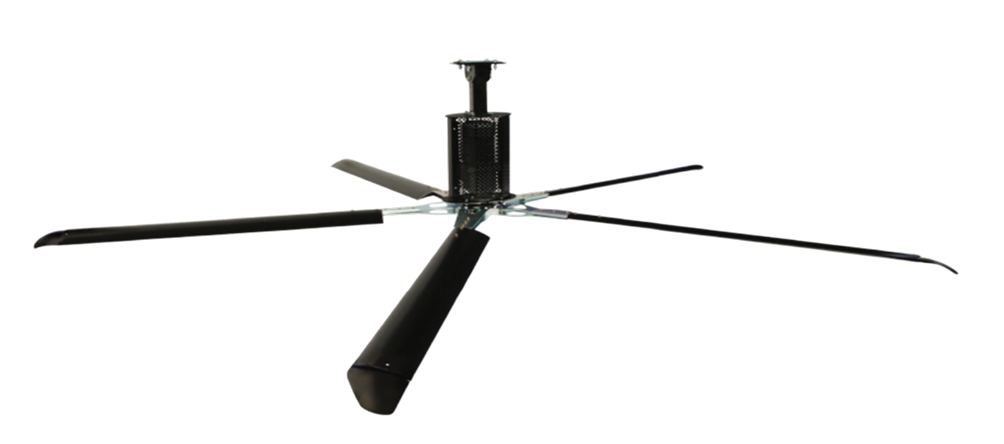

Epic Fans Colossus

The Epic Colossus is a legacy HVLS fan with robust motor-gearbox architecture and five extruded airfoils with winglets for exceptional airflow. Sized between 8–24 ft, it operates quietly (<55 dBA) and supports wired touchscreen or networked iFan controls. AMCA-tested, customizable finishes, and mounting options make it ideal for large industrial spaces like warehouses and hangars

	Name	Brand	Model	Model Number	Diameter (ft)	Input Voltage	Motor Size (HP)	Motor Voltage	(@100%) - Fan RPM	RPM	SKU
View	Epic Colossus - 8 ft (200V-240V/1Ø)	Epic Fans	Colossus	EF08-155	8	200V-240V, 1Ø, 50/60 HZ	1.5	230V, 60 HZ	199	198	EPIC-CIF-08-21
View	Epic Colossus - 8 ft (200V-240V/3Ø)	Epic Fans	Colossus	EF08-155	8	200V-240V, 3Ø, 50/60 HZ	1.5	230V, 60 HZ	199	198	EPIC-CIF-08-23
View	Epic Colossus - 8 ft (360V-480V/3Ø)	Epic Fans	Colossus	EF08-155	8	360V-480V, 3Ø, 50/60 HZ	1.5	460V, 60 HZ	199	198	EPIC-CIF-08-43
View	Epic Colossus - 8 ft ( 575V/3Ø)	Epic Fans	Colossus	EF08-155	8	575V, 3Ø	1.5	575V	199	198	EPIC-CIF-08-53
View	Epic Colossus - 10 ft (200V-240V/1Ø)	Epic Fans	Colossus	EF10-155	10	200V-240V, 1Ø, 50/60 HZ	1.5	230V, 60 HZ	149	154	EPIC-CIF-10-21
View	Epic Colossus - 12 ft (200V-240V/1Ø)	Epic Fans	Colossus	EF12-155	12	200V-240V, 1Ø, 50/60 HZ	1.5	230V, 60 HZ	124	125	EPIC-CIF-12-21
View	Epic Colossus - 12 ft (200V-240V/3Ø)	Epic Fans	Colossus	EF12-155	12	200V-240V, 3Ø, 50/60 HZ	1.5	230V, 60 HZ	124	125	EPIC-CIF-12-23
View	Epic Colossus - 12 ft (360V-480V/3Ø)	Epic Fans	Colossus	EF12-155	12	360V-480V, 3Ø, 50/60 HZ	1.5	460V, 60 HZ	124	125	EPIC-CIF-12-43
View	Epic Colossus - 14 ft (200V-240V/1Ø)	Epic Fans	Colossus	EF14-155	14	200V-240V, 1Ø, 50/60 HZ	1.5	230V, 60 HZ	103	106	EPIC-CIF-14-21
View	Epic Colossus - 14 ft (200V-240V/3Ø)	Epic Fans	Colossus	EF14-155	14	200V-240V, 3Ø, 50/60 HZ	1.5	230V, 60 HZ	103	106	EPIC-CIF-14-23
View	Epic Colossus - 14 ft (360V-480V/3Ø)	Epic Fans	Colossus	EF14-155	14	360V-480V, 3Ø, 50/60 HZ	1.5	460V, 60 HZ	103	106	EPIC-CIF-14-43
View	Epic Colossus - 16 ft (200V-240V/1Ø)	Epic Fans	Colossus	EF16-155	16	200V-240V, 1Ø, 50/60 HZ	1.5	230V, 60 HZ	92	92	EPIC-CIF-16-21
View	Epic Colossus - 16 ft (200V-240V/3Ø)	Epic Fans	Colossus	EF16-155	16	200V-240V, 3Ø, 50/60 HZ	1.5	230V, 60 HZ	92	92	EPIC-CIF-16-23
View	Epic Colossus - 16 ft (360V-480V/3Ø)	Epic Fans	Colossus	EF16-155	16	360V-480V, 3Ø, 50/60 HZ	1.5	460V, 60 HZ	92	92	EPIC-CIF-16-43
View	Epic Colossus - 16 ft ( 575V/3Ø)	Epic Fans	Colossus	EF16-155	16	575V, 3Ø	1.5	575V	92	92	EPIC-CIF-16-53
View	Epic Colossus - 18 ft (200V-240V/1Ø)	Epic Fans	Colossus	EF18-155	18	200V-240V, 1Ø, 50/60 HZ	1.5	230V, 60 HZ	78	81	EPIC-CIF-18-21
View	Epic Colossus - 18 ft (200V-240V/3Ø)	Epic Fans	Colossus	EF18-155	18	200V-240V, 3Ø, 50/60 HZ	1.5	230V, 60 HZ	78	81	EPIC-CIF-18-23
View	Epic Colossus - 18 ft (360V-480V/3Ø)	Epic Fans	Colossus	EF18-155	18	360V-480V, 3Ø, 50/60 HZ	1.5	460V, 60 HZ	78	81	EPIC-CIF-18-43
View	Epic Colossus - 18 ft ( 575V/3Ø)	Epic Fans	Colossus	EF18-155	18	575V, 3Ø	1.5	575V	78	81	EPIC-CIF-18-53
View	Epic Colossus - 20 ft (360V-480V/3Ø)	Epic Fans	Colossus	EF20-155	20	360V-480V, 3Ø, 50/60 HZ	1.5	460V, 60 HZ	72	72	EPIC-CIF-20-43
View	Epic Colossus - 20 ft (200V-240V/1Ø)	Epic Fans	Colossus	EF20-155	20	200V-240V, 1Ø, 50/60 HZ	1.5	230V, 60 HZ	72	72	EPIC-CIF-20-21
View	Epic Colossus - 20 ft (200V-240V/3Ø)	Epic Fans	Colossus	EF20-155	20	200V-240V, 3Ø, 50/60 HZ	1.5	230V, 60 HZ	72	72	EPIC-CIF-20-23
View	Epic Colossus - 20 ft ( 575V/3Ø)	Epic Fans	Colossus	EF20-155	20	575V, 3Ø	1.5	575V	72	72	EPIC-CIF-20-53
View	Epic Colossus - 24 ft (200V-240V/1Ø)	Epic Fans	Colossus	EF24-205	24	200V-240V, 1Ø, 50/60 HZ	2.0	230V, 60 HZ	59	60	EPIC-CIF-24-21
View	Epic Colossus - 24 ft (200V-240V/3Ø)	Epic Fans	Colossus	EF24-205	24	200V-240V, 3Ø, 50/60 HZ	2.0	230V, 60 HZ	59	60	EPIC-CIF-24-23
View	Epic Colossus - 24 ft (360V-480V/3Ø)	Epic Fans	Colossus	EF24-205	24	360V-480V, 3Ø, 50/60 HZ	2.0	460V, 60 HZ	59	60	EPIC-CIF-24-43
View	Epic Colossus - 24 ft ( 575V/3Ø)	Epic Fans	Colossus	EF24-205	24	575V, 3Ø	2.0	575V	59	60	EPIC-CIF-24-53
