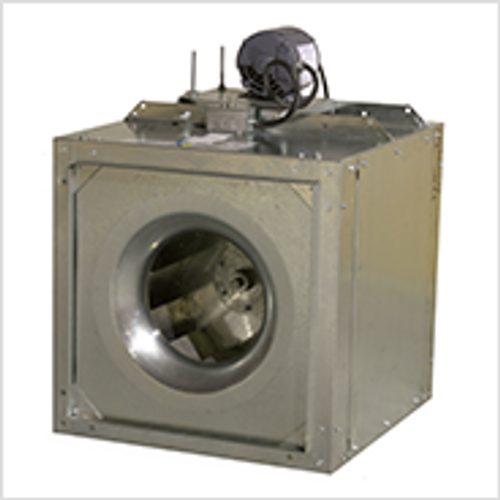

Inline Duct Fan Centrifugal: Belt Drive (3Ø/208-230-460V; Up to 5758 CFM)(1-1/2 HP)
(No reviews)
Write a Review
Write a Review
Soler & Palau
Inline Duct Fan Centrifugal: Belt Drive (3Ø/208-230-460V; Up to 5758 CFM)(1-1/2 HP)
Log in for pricing
SKU:
SP-SQB24TH3S
-
System Design & Layout
Engineering and temperature analysis
-
Equipment Selection Guidance
Get the best product for your facility
-
Maintenance Support
We'll be there if you need us, 24/7/365.
-
Fast Support
Our team is only a phone call away.
Description
Inline Duct Fan Centrifugal: Belt Drive
| MOTOR HP | 1-1/2 |
| Phase | 3 |
| Voltage | 208-230-460 |
| Size | 24 |
| Exhaust/Supply | Exhaust |
| Drive Type | Belt |
| Model | SQB |
| Fan Type | Inline Duct Centrifugal |
| RPM | 660 |
| Model Number | SQB24TH3S |
| Frequency | 60 |
| DIM A | 39 |
| DIM B | 38 |
| DIM C | 34-7/8 |
| AVG SHIP WT. | 320 |
| MAX. BHP | 2.08 |
| SONES AT 1/2 WG | 9.9 |
| CFM @ 1/8 WG | 5758 |
| CFM @ 1/4 WG | 5391 |
| CFM @ 3/8 WG | 4912 |
| CFM @ 1/2 WG | 4528 |
| CFM @ 3/4 WG | 3405 |
| CFM @ 1 WG | - |
| CFM @ 1 1/4 WG | - |
| CFM @ 1 1/2 WG | - |
| MOTOR TYPE | ODP |
