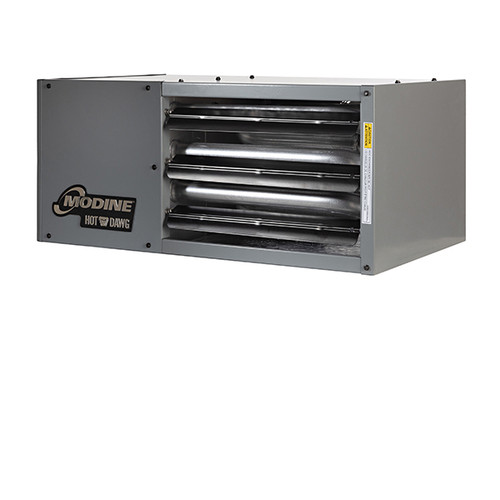

Modine HD Propeller Unit Heater 125,000 BTU/hr Input - (115V/60Hz/1Ø)
(No reviews)
Write a Review
Write a Review
Modine
Modine HD Propeller Unit Heater 125,000 BTU/hr Input - (115V/60Hz/1Ø)
Log in for pricing
SKU:
MOD-HD-125AS0111FDAN
-
System Design & Layout
Engineering and temperature analysis
-
Equipment Selection Guidance
Get the best product for your facility
-
Maintenance Support
We'll be there if you need us, 24/7/365.
-
Fast Support
Our team is only a phone call away.
Description
Propeller Unit Heater 1980 CFM (115V/60Hz/1Ø)
| MOTOR HP | 1/8 |
| Model | HD |
| Model Number | HD-125AS0111FDAN |
| CFM | 1980 |
| PHASE (Ø) | 1 |
| Volts (V) | 115 |
| CONTROL VOLTAGE (V) | 24 |
| BTU/Hr Output | 102500 |
| Temperature Rise (°F) | 48 |
| Motor (RPM) | 1625 |
| Length (in) | 4 |
| Width (in) | 12 |
| Frequency | 60 |
| Outlet Velocity | 747 |
| G (in) | 22 |
| Vent Connector Diameter (in) | 4 |
| Quantity of Units | 3 |
| BTU/HR Input | 125000 |
| Discharge Velocity FPM | 1980 |
| Motor Amps at 115V | 2.2 |
| Unit Total Power (Amps) | 4.75 |
| Altitude | 0-2000 |
| Blower RPM | N/A |
| Heat Exchanger Type | Aluminized Steel Heat Exchanger/Burner |
| Gas Control Type | Single Stage, Direct Spark Ignition, 100% Shut-Off with Continuous Retry |
| Thermal Efficiency (%) | 82 |
| Gas Connection Diameter (in) | 1/2 |
| Fan Diameter (in) | 18 |
| Radiating Area (sq. inches) | 82 |
| Base Unit Weight (lb) | 18 |
| Approx. Shipping Weight (lb) | 143 |
| G (Mounting Hole) (in) | 22.52 |
| K (Mtg Holes) (in) | 8.38 |
| M (in) | 30.63 |
| Mounting Height (Max Ft.) | 16 |
| Heat Throw (Max Mtg Ft) | 56 |
| Clearance to Combustibles (Top and Bottom) (in) | 1 |
| Clearance to Combustibles (Vent Connector) (in) | 4 |
| Clearance to Combustibles (Access Side) (in) | 18 |
| Clearance to Combustibles (Non-Access Side) (in) | 1 |
| Clearance to Combustibles (Rear) (in) | 18 |
| Clearance to Combustibles (Top) (in) | 1 |
| Clearance to Combustibles (Bottom) (in) | 1 |
| Clearance to Combustibles (Access and Non-Access Side) (in) | 4 |
| Clearance to Combustibles (Top at 20-35° Mounting Angle) (in) | 18 |
