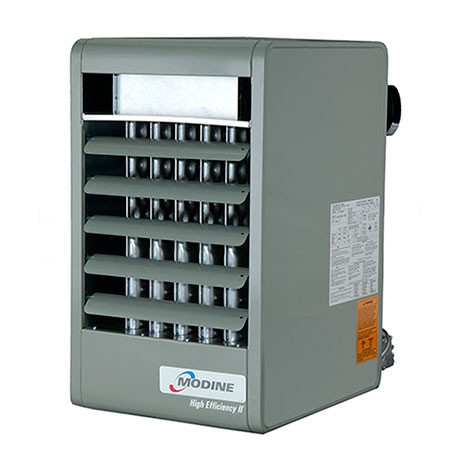

Modine PTP Propeller Unit Heater 175,000 BTU/hr Input - (115V/60Hz/1Ø)
Modine PTP Propeller Unit Heater 175,000 BTU/hr Input - (115V/60Hz/1Ø)

Modine PTP Propeller Unit Heater 175,000 BTU/hr Input - (115V/60Hz/1Ø)

(No reviews) Write a Review

Log in for pricing

SKU: MOD-PTP-175AS0111SBAN
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

Propeller Unit Heater 2725 CFM (115V/60Hz/1Ø)
Specifications
MOTOR HP 1/6
Model PTP
Model Number PTP-175AS0111SBAN
CFM 2725
PHASE (Ø) 1
Volts (V) 115
CONTROL VOLTAGE (V) 24
BTU/Hr Output 143500
Temperature Rise (°F) 49
Motor (RPM) 1075
Length (in) 4
Width (in) 12
Frequency 60
Outlet Velocity 607
G (in) 22.05
Vent Connector Diameter (in) 4
Quantity of Units 2
BTU/HR Input 175000
Discharge Velocity FPM 2725
Motor Amps at 115V 2.5
Unit Total Power (Amps) 5.05
Altitude 0-2000
Blower RPM N/A
Heat Exchanger Type Aluminized Steel Heat Exchanger/Burner
Gas Control Type Single Stage, Direct Spark Ignition, 100% Shut-Off with Continuous Retry
Thermal Efficiency (%) 82
Gas Connection Diameter (in) 1/2
Fan Diameter (in) 22
Radiating Area (sq. inches) 82
Base Unit Weight (lb) 22
Approx. Shipping Weight (lb) 163
G (Mounting Hole) (in) 3/8-16
J (Round) (in) 3/8-16
K (Mtg Holes) (in) 8.37
M (in) 32.83
Q (in) 44.83
R (in) 3.56
S (in) 14.9
T (in) 10
U (in) 20.53
W (in) 3.56
X (in) 14.9
AA (in) 10
BB (in) 20.53
Mounting Height (Max Ft.) 14
Heat Throw (Max Mtg Ft) 50
Clearance to Combustibles (Top and Bottom) (in) 6
Clearance to Combustibles (Vent Connector) (in) 6
Clearance to Combustibles (Access Side) (in) 6
Clearance to Combustibles (Non-Access Side) (in) 6
Clearance to Combustibles (Rear) (in) 18
Clearance to Combustibles (Top) (in) 6
Clearance to Combustibles (Bottom) (in) 6
Clearance to Combustibles (Access and Non-Access Side) (in) 6
Clearance to Combustibles (Top at 20-35° Mounting Angle) (in) 6
!
