Ouellet OAS 20kW - (208V/3Ø): Commercial & Industrial Suspended Unit Heater
Log in for pricing
SKU:
OUE-OAS-OASU20038AM
UPC:
625262026737
-
System Design & Layout
Engineering and temperature analysis
-
Equipment Selection Guidance
Get the best product for your facility
-
Maintenance Support
We'll be there if you need us, 24/7/365.
-
Fast Support
Our team is only a phone call away.
Description

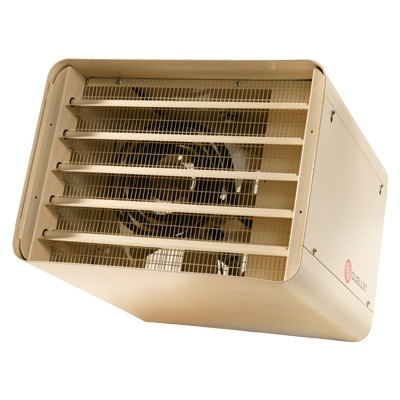

Commercial industrial suspended unit heater 20000W 208V 3ph almond
| MOTOR HP | 1/8 |
| Model | OAS |
| Model Number | OASU20038AM |
| CFM | 1300 |
| PHASE (Ø) | 3Ø |
| Volts (V) | 208V |
| WATTS (W) | 20000 |
| BTU/HR | 68240 |
| Temperature Rise (°C) | 27 |
| Temperature Rise (°F) | 49 |
| Motor (RPM) | 1550 |
| Length (in) | 0 |
| Width (in) | 0 |
| Height (in) | 0 |
| Length (mm) | 0 |
| Weight (lb) | 39 |
| Weight (kg) | 85 |
| Construction | 18 and 20-gauge steel. Adjustable louvers to direct air flow. High-limit temperature control with automatic reset. |
| Finish | Standard: epoxy/polyester powder paint. |
| A (mm) | 444 |
| B (mm) | 556 |
| C (mm) | 572 |
| D (mm) | 470 |
| E (mm) | 407 |
| F (mm) | 630 |
| G (mm) | 305 |
| G (in) | 12 |
| H (mm) | 148 |
| I (mm) | 592 |
| Heating Element | Tubular heating elements; stainless steel (2 to 10kW); finned steel (15 to 60kW). Concentric disposition of heating elements. Factory sealed element upon request. |
3-year warranty against defects
