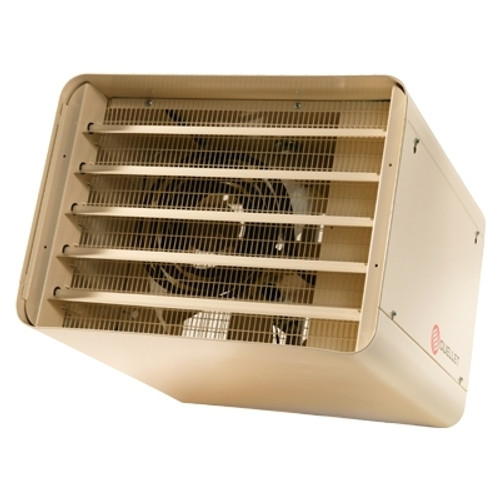

Ouellet OAS 5kW - (208V/1Ø) Commercial & Industrial Suspended Unit Heater - Almond
Ouellet OAS 5kW - (208V/1Ø) Commercial & Industrial Suspended Unit Heater - Almond

Ouellet OAS 5kW - (208V/1Ø) Commercial & Industrial Suspended Unit Heater - Almond

(No reviews) Write a Review

Log in for pricing

SKU: OUE-OAS-OASU05008AM
UPC: 625262024894
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

Commercial industrial suspended unit heater 5000W 208V 1ph almond
Product Options
Product Name SKU Description Price
Specifications
MOTOR HP 1/30
Model OAS
Model Number OASU05008AM
CFM 700
PHASE (Ø) 1Ø
Volts (V) 208V
WATTS (W) 5000
BTU/HR 17060
Temperature Rise (°C) 13
Temperature Rise (°F) 23
Motor (RPM) 1550
Length (in) 0
Width (in) 0
Height (in) 0
Length (mm) 0
Weight (lb) 20
Weight (kg) 45
Construction 18 and 20-gauge steel. Adjustable louvers to direct air flow. High-limit temperature control with automatic reset.
Finish Standard: epoxy/polyester powder paint.
A (mm) 309
B (mm) 419
C (mm) 432
D (mm) 357
E (mm) 290
F (mm) 490
G (mm) 305
G (in) 12
H (mm) 123
I (mm) 428
Heating Element Tubular heating elements; stainless steel (2 to 10kW); finned steel (15 to 60kW). Concentric disposition of heating elements. Factory sealed element upon request.
Warranty Information
3-year warranty against defects
!
