Ouellet OCF 3000W - (240V/1Ø): Infrared Patio Heater
Ouellet OCF 3000W - (240V/1Ø): Infrared Patio Heater

Ouellet OCF 3000W - (240V/1Ø): Infrared Patio Heater

(No reviews) Write a Review

Log in for pricing

SKU: OUE-OCF-CF30240SS-240
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

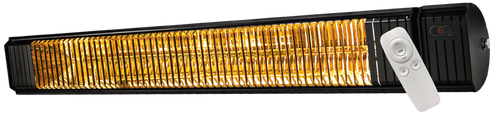

Infrared patio heater 3000W 240V, stainless steel
Specifications
Model OCF
Model Number CF30240SS-240
PHASE (Ø) 1
Volts (V) 240
WATTS (W) 3000
Length (in) 38
Width (in) 6.3125
Height (in) 6.5
Length (mm) 965.2
Weight (lb) 14.3
Weight (kg) 6 2/5
Width (mm) 161
Construction Weatherproof IP65 certified for outdoor use. 2 mm thickness aluminum extrusion casing. High quality aluminum optical reflector. High quality power cord: 120V model: 7.5 ft. (2.25 m) with NEMA 5-15P plug. 240/208V models: 6 ft. (1.8 m) hard wire.
Finish Black anodized aluminum
Height (mm) 165
Wall Mounted Heat Coverage (B) (ft. in.) 11'
Wall Mounted Heat Coverage (B) (m) 3.35
Wall Mounted Heat Coverage (C) (ft. in.) 10'
Wall Mounted Heat Coverage (C) (m) 3.05
Wall Mounted Heat Coverage (D) (ft. in.) 12'
Wall Mounted Heat Coverage (D) (m) 3.66
Total Wall Mounted Heat Coverage (sq. ft) 120
Total Wall Mounted Heat Coverage (sq. m) 11.2
Ceiling Mounted Heat Coverage (A) (ft. in.) 8'
Ceiling Mounted Heat Coverage (A) (m) 2.44
Ceiling Mounted Heat Coverage (B) (ft. in.) 11'
Ceiling Mounted Heat Coverage (B) (m) 3.35
Ceiling Mounted Heat Coverage (C) (ft. in.) 11'
Ceiling Mounted Heat Coverage (C) (m) 3.35
Ceiling Mounted Heat Coverage (D) (ft. in.) 11'
Ceiling Mounted Heat Coverage (D) (m) 3.35
Total Ceiling Mounted Heat Coverage (sq. ft) 120
Total Ceiling Mounted Heat Coverage (sq. m) 11.2
Heating Element Woven carbon filament infrared lamp inside a 15 mm Quartz tube. Element service life ± 5000h.
Warranty Information
1-year warranty against defects. 90-day warranty on the element (industrial applications only)
!
