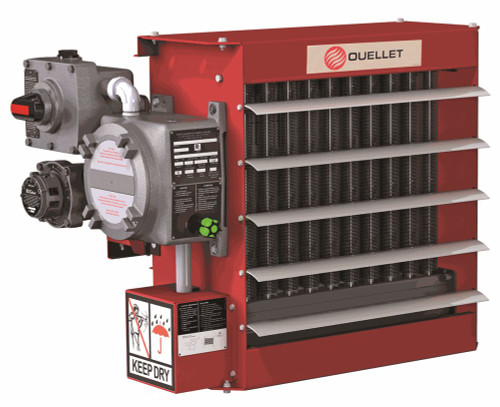

Ouellet OHX 15000W - (208V/3Ø): Explosion Proof Unit Heater
Ouellet OHX 15000W - (208V/3Ø): Explosion Proof Unit Heater

Ouellet OHX 15000W - (208V/3Ø): Explosion Proof Unit Heater

(No reviews) Write a Review

Log in for pricing

SKU: OUE-OHX-OHX15038
UPC: 625262298738
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

Explosion-proof unit heater 15000W 208V 3ph
Product Options
Product Name SKU Description Price
Specifications
Model OHX
Model Number OHX15038
CFM 1200
PHASE (Ø) 3
Volts (V) 208
WATTS (W) 15000
BTU/HR 51180
Temperature Rise (°C) 21.7
Temperature Rise (°F) 39.1
Length (in) 0
Width (in) 0
Height (in) 0
Length (mm) 0
Weight (lb) 224
Weight (kg) 101.6
Construction 14-gauge steel cabinet. Adjustable anodized aluminum louvers. Cast aluminum control and element enclosure lids NEMA Type 7 and 9 with O-ring. Fan Guard: multiple horizontal stiffening wires.
Finish Standard: epoxy/polyester powder paint.
A (mm) 191
B (mm) 566
C (mm) 516
D (mm) 584
E (mm) 597
F (mm) 130
G (mm) 566
G (in) 22.3
T° Code T3B
Heating Element High grade metal-sheathed elements fins with ethylene glycol/water solution. Long-life, low watt density. Evacuated and sealed, carbon steel tube core with 10 aluminum fins per inch.
Warranty Information
3-year warranty
!
