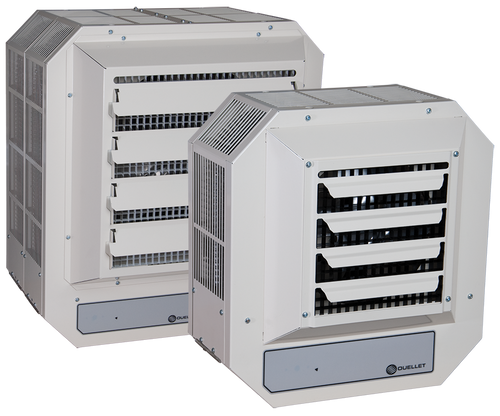

Ouellet OHV 19800W - (240V/3Ø): Commercial Unit Heater
(No reviews)
Write a Review
Write a Review
Ouellet
Ouellet OHV 19800W - (240V/3Ø): Commercial Unit Heater
Log in for pricing
SKU:
OUE-OHV-OHVU19830AM-24-240
UPC:
625262028564
-
System Design & Layout
Engineering and temperature analysis
-
Equipment Selection Guidance
Get the best product for your facility
-
Maintenance Support
We'll be there if you need us, 24/7/365.
-
Fast Support
Our team is only a phone call away.
Description
Commercial unit heater 19800W 240V 3ph 60HZ almond, 24V control circuit
| MOTOR HP | 1/8 |
| Model | OHV |
| Model Number | OHVU19830AM-24-240 |
| CFM | 1300 |
| PHASE (Ø) | 3Ø |
| Volts (V) | 240 |
| WATTS (W) | 19800 |
| BTU/HR | 67560 |
| CONTROL VOLTAGE (V) | 24 |
| Temperature Rise (°C) | 27 |
| Temperature Rise (°F) | 49 |
| Motor (RPM) | 1550 |
| Length (in) | 0 |
| Width (in) | 0 |
| Height (in) | 0 |
| Length (mm) | 0 |
| Weight (lb) | 90 |
| Weight (kg) | 41 |
| Finish | Standard: epoxy/polyester powder paint. |
| A (mm) | 622 |
| B (mm) | 559 |
| C (mm) | 412 |
| D (mm) | 289 |
| E (mm) | 556 |
| F (mm) | 152 |
| Heating Element | Stainless steel sheath with aluminum fins. Draw-through design permits greater heat transfer |
| Construction | Draw-through design for more evenly heated air. Specially designed outlet diffuser provides maximum air velocity. Individually adjustable louvers to direct discharge air flow. High-limit temperature control with automatic reset. 18 and 20 g... |
| Document Name | Download URL |
|---|---|
| Specification Sheet | View Document |
| Submittal | View Document |
5-year warranty
