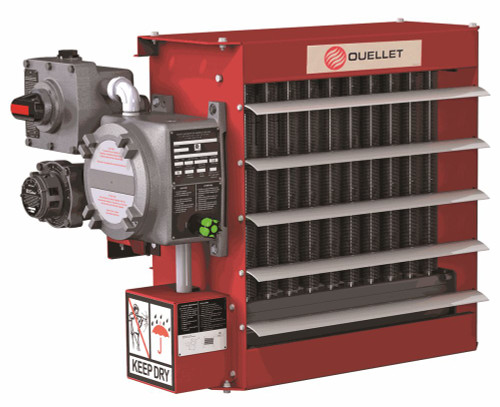

Ouellet OHX 3000W - (480V/3Ø): Explosion Proof Unit Heater
Ouellet OHX 3000W - (480V/3Ø): Explosion Proof Unit Heater

Ouellet OHX 3000W - (480V/3Ø): Explosion Proof Unit Heater

(No reviews) Write a Review

Log in for pricing

SKU: OUE-OHX-OHX03034
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

Explosion-proof unit heater 3000W 480V 3ph
Product Options
Product Name SKU Description Price
Specifications
Model OHX
Model Number OHX03034
CFM 350
PHASE (Ø) 3
Volts (V) 480
WATTS (W) 3000
BTU/HR 10236
Temperature Rise (°C) 18
Temperature Rise (°F) 32.2
Length (in) 0
Width (in) 0
Height (in) 0
Length (mm) 0
Weight (lb) 188
Weight (kg) 85.3
Construction 14-gauge steel cabinet. Adjustable anodized aluminum louvers. Cast aluminum control and element enclosure lids NEMA Type 7 and 9 with O-ring. Fan Guard: multiple horizontal stiffening wires.
Finish Standard: epoxy/polyester powder paint.
A (mm) 191
B (mm) 462
C (mm) 414
D (mm) 483
E (mm) 495
F (mm) 79
G (mm) 566
G (in) 22.3
T° Code T3A
Heating Element High grade metal-sheathed elements fins with ethylene glycol/water solution. Long-life, low watt density. Evacuated and sealed, carbon steel tube core with 10 aluminum fins per inch.
Warranty Information
3-year warranty
!
