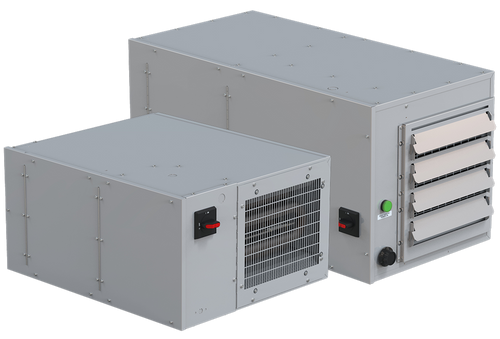

Ouellet OPH 10000W - (600V/3Ø): Plenum Rated Unit Heater
(No reviews)
Write a Review
Write a Review
Ouellet
Ouellet OPH 10000W - (600V/3Ø): Plenum Rated Unit Heater
Log in for pricing
SKU:
OUE-OPH-OPH10036AL-DIS40
UPC:
625262800733
-
System Design & Layout
Engineering and temperature analysis
-
Equipment Selection Guidance
Get the best product for your facility
-
Maintenance Support
We'll be there if you need us, 24/7/365.
-
Fast Support
Our team is only a phone call away.
Description
Plenum Rated Unit Heater 10000W 600V 3ph aluminum, disconnect
| MOTOR HP | 1/3 |
| Model | OPH |
| Model Number | OPH10036AL-DIS40 |
| PHASE (Ø) | 3 |
| Volts (V) | 600 |
| WATTS (W) | 10000 |
| BTU/HR | 34121 |
| Temperature Rise (°C) | 18 |
| Temperature Rise (°F) | 32 |
| Motor (RPM) | 1075 |
| Length (in) | 18.125 |
| Width (in) | 35.625 |
| Height (in) | 18.125 |
| Length (mm) | 461 |
| Weight (lb) | 100 |
| Weight (kg) | 45.5 |
| Width (mm) | 905 |
| Construction | 54 and 20-gauge steel. Adjustable louver for air flow direction available. Automatic reset and manual reset high-limit temperature control. One contactor per high-limit temperature control, on independent circuit. |
| Finish | Standard: epoxy/polyester powder paint. |
| Height (mm) | 460 |
| cfm min (low speed) | 1100 |
| cfm min (high speed) | 1200 |
| Heating Element | Three tubular heating elements with fins (for 3.1kW-5kW-7.5kW models). Six tubular heating elements with fins (for 10kW-12kW-15kW models). |
3-year warranty
