Ouellet ORP 300W - (240V/1Ø): Architectural Radiant Panel
Ouellet ORP 300W - (240V/1Ø): Architectural Radiant Panel

Ouellet ORP 300W - (240V/1Ø): Architectural Radiant Panel

(No reviews) Write a Review

Log in for pricing

SKU: OUE-ORP-AS1448-300-240PW
UPC: 851206000550
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

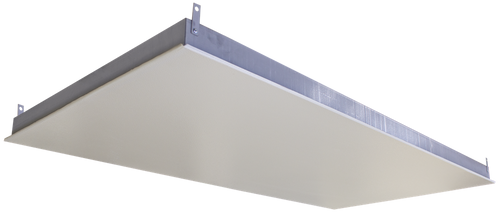

Architectural Radiant Panel 13-3/4 x 47-3/4, 300W, 240V, polar white
Product Options
Product Name SKU Description Price
Specifications
Model ORP
Model Number AS1448-300-240PW
PHASE (Ø) 1
Volts (V) 240
WATTS (W) 300
Length (in) 0
Width (in) 0
Height (in) 0
Length (mm) 0
Weight (lb) 18
Weight (kg) 8.2
Finish High-temperature polyester powder paint.
A (mm) 349.25
B (mm) 1212.85
Heating Element Nickel-chrome alloy resistance wire, PTFE insulation evenly distributed over the panel.
Construction Reflective foil used to adhere to the panel heating elements. High-temperature mineral wool insulation, 4 PSF density, 2" (50.8 mm) thick. 22-gauge galvanized steel panel frame and front. Internal junction box with cover. Optional external ...
Warranty Information
1-year paint warranty. 10-year warranty on the heating element
!
