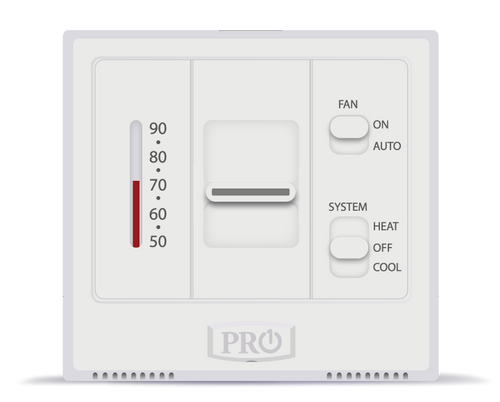

PRO1 T501M Single Stage
PRO1 T501M Single Stage

PRO1 T501M Single Stage

(No reviews) Write a Review

Log in for pricing

SKU: PRO1-MT-T501M
UPC: 095247201280
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

T500 Platform: Mechanical thermostat, non-programmable, Three thermostats in one: 1H/1C w/ fan, 1H/0C w/ fan & 1H/0C w/o fan.
Specifications
Model MT
Model Number T501M
Voltage (V) 24 Volt Mechanical
Application 1 Heat, 1 Cool
MODEL FEATURES • Simple private label badge system • Mechanical 24 VAC Power • Three thermostats in one • Heat-O-Cool • Heat only with fan • Heat only without fan • 2 Year Warranty • Removable fan switch • Mounts on wall or junction box (selectable o...
PROGRAMMABILITY Non-Programmable
CHANGEOVER System Switch
DISPLAY RANGE 50˚F to 90˚F (10˚C to 32˚C)
CONTROL RANGE 50˚F to 90˚F (10˚C to 32˚C)
DISPLAY ACCURACY +/- 1˚F
HEAT SWING Adjustable from 0.2˚F to 2.0˚F
COOL SWING Adjustable from 0.2˚F to 2.0˚F
TERMINALS Rc, Rh, G, Y, W, O, B
LOAD RATING 1 amp per terminal, 1.5 amp maximum all terminals combined
POWER SOURCE 24 VAC
OPERATING AMBIENT 32˚F to +105˚F (0˚C to +41˚C)
OPERATING HUMIDITY 90% non-condensing maximum
MOUNTING Wall or Junction Box
DIMENSIONS 4.7”W x 4.4”H x 1.3”D (119mm W x 112mm H x 28mm D)
!
