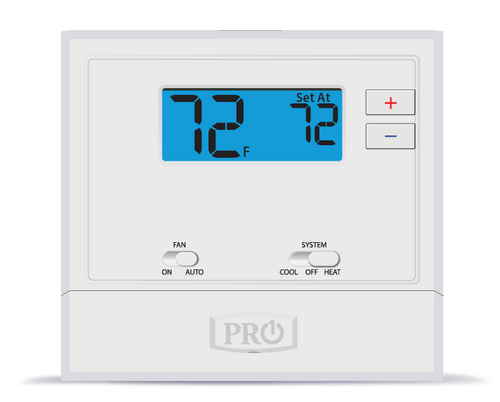

PRO1 T601-2 Single Stage
PRO1 T601-2 Single Stage

PRO1 T601-2 Single Stage

(No reviews) Write a Review

Log in for pricing

SKU: PRO1-DT-T601-2
UPC: 095247201310
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

T600 Platform: non-programmable, conventional, 1H/1C with 2 sq. in. display
Specifications
Model DT
Model Number T601-2
Application 1 Heat, 1 Cool
MODEL FEATURES • 2 sq. inch display • Blue backlight • Glow in the dark light button • Easy access battery compartment • Setpoint limits • Simple private label badge system • 2 Year Warranty • Seperate heating and cooling swing (cycle rate) adjustments •...
PROGRAMMABILITY Non-Programmable
CHANGEOVER System Switch
DISPLAY RANGE 41˚F to 95˚F (5˚C to 35˚C)
CONTROL RANGE 44˚F to 90˚F (7˚C to 32˚C)
DISPLAY ACCURACY +/- 1˚F
HEAT SWING Adjustable from 0.2˚F to 2.0˚F
COOL SWING Adjustable from 0.2˚F to 2.0˚F
TERMINALS Rc, Rh, G, Y, W, G, O, B
LOAD RATING 1 amp per terminal, 1.5 amp maximum all terminals combined
POWER SOURCE 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries
OPERATING AMBIENT 32˚F to +105˚F (0˚C to +41˚C)
OPERATING HUMIDITY 90% non-condensing maximum
MOUNTING Wall or Junction Box
DIMENSIONS 4.7”W x 4.4”H x 1.1”D (119mm W x 112mm H x 28mm D)
!
