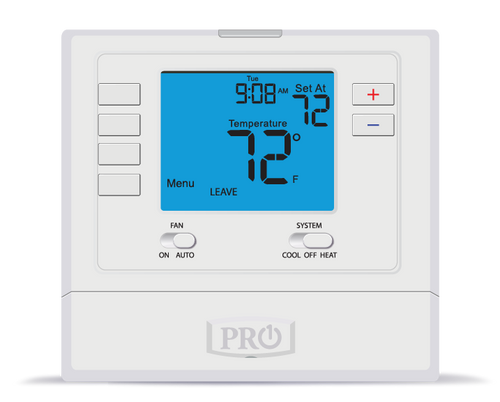

PRO1 T715 Multi-Stage Gas
PRO1 T715 Multi-Stage Gas

PRO1 T715 Multi-Stage Gas

(No reviews) Write a Review

Log in for pricing

SKU: PRO1-DT-T715
UPC: 095247201471
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

T700 Platform: 7 day, 5/1/1, or 0 day programmable, multi-stage, 2H/2C with 4 sq. in. display
Specifications
Model DT
Model Number T715
Application 2 heat, 2 cool
MODEL FEATURES • 4 sq. inch display • Blue backlight • Glow in the dark light button • Easy access battery compartment • Schedule copy features • 5 Year Warranty • 5 minute compressor delay protection (selectable on or o) • Customizable staging logic • ...
PROGRAMMABILITY 7 day, 5-1-1 or Non-Programmable
CHANGEOVER System Switch
DISPLAY RANGE 41˚F to 95˚F (5˚C to 35˚C)
CONTROL RANGE 44˚F to 90˚F (7˚C to 32˚C)
DISPLAY ACCURACY +/- 1˚F
HEAT SWING Adjustable from 0.2˚F to 2.0˚F
COOL SWING Adjustable from 0.2˚F to 2.0˚F
TERMINALS Rc, Rh, G, Y , Y2, C, O, B, W, W2
LOAD RATING 1 amp per terminal, 1.5 amp maximum all terminals combined
POWER SOURCE 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries
OPERATING AMBIENT 32˚F to +105˚F (0˚C to +41˚C)
OPERATING HUMIDITY 90% non-condensing maximum
MOUNTING Wall or Junction Box
DIMENSIONS 4.7”W x 4.4”H x 0.8”D (119mm W x 112mm H x 20mm D)
!
