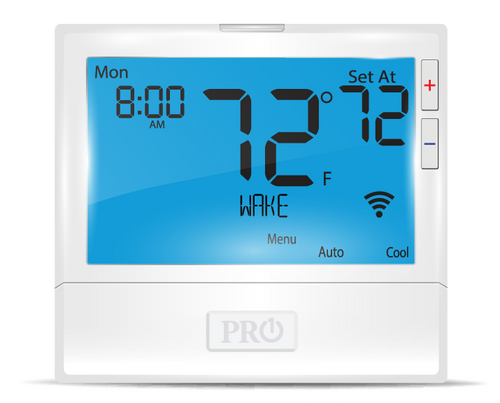

PRO1 T721i Heat Pump/Conventional - WiFi
PRO1 T721i Heat Pump/Conventional - WiFi

PRO1 T721i Heat Pump/Conventional - WiFi

(No reviews) Write a Review

Log in for pricing

SKU: PRO1-WIFI-T721i
UPC: 095247201518
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

T700 Platform: WIFI enabled, iOS & Android, 7 day, 5/1/1, or 0 day programmable from the app only, 2H/1C with 4 sq. in. display
Specifications
Model WIFI
Model Number T721i
Application 1 Heat, 1 Cool Conventional / 2 Heat, 1 Cool Heat Pump
MODEL FEATURES • 7 sq. inch display • Blue backlight • Glow in the dark light button • Universal subbase • Simple private label badge system • Setpoint limits • 24V power • 5 Year warranty • 5 minute compressor delay protection (selectable on or off) • Cu...
PROGRAMMABILITY Programmable Through App
CHANGEOVER System Switch
DISPLAY RANGE 41˚F to 95˚F (5˚C to 35˚C)
CONTROL RANGE 44˚F to 90˚F (7˚C to 32˚C)
DISPLAY ACCURACY +/- 1˚F
HEAT SWING Adjustable from 0.2˚F to 2.0˚F
COOL SWING Adjustable from 0.2˚F to 2.0˚F
TERMINALS Rc, Rh, Y, W2 , W/E, G, B, O
LOAD RATING 1 amp per terminal, 1.5 amp maximum all terminals combined
POWER SOURCE 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)
OPERATING AMBIENT 32°F to +105°F (0°C to +41°C)
OPERATING HUMIDITY 90% non-condensing maximum
MOUNTING Wall or Junction Box
DIMENSIONS 4.7”W x 4.4”H x 0.8”D (119mm W x 112mm H x 20mm D)
!
