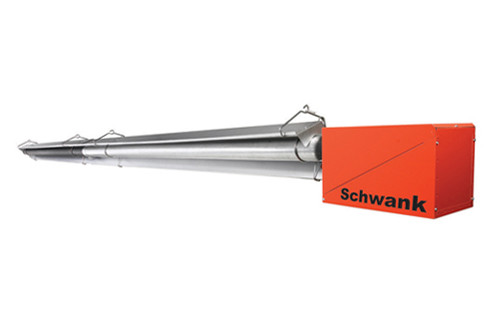

Schwank 2-Stage Tube Heater: 200/140,000 Btuh NG; 50 FT; USA
Schwank 2-Stage Tube Heater: 200/140,000 Btuh NG; 50 FT; USA

Schwank 2-Stage Tube Heater: 200/140,000 Btuh NG; 50 FT; USA

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-SET-200-50-AN
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

2-Stage Positive Pressure Series Gas Fired Infrared Tube Heater, 200/140 MBH, natural gas, 50 ft tube.
Specifications
Model SET
Model Number SET-200-50-AN
Application Indoor commercial and industrial applications.
Motor Housing: The clam shell, provides access from the 2 sides, end, and bottom. Head: Incorporates effective ceramic burner head with minimum 835 flame ports.
Voltage (phase) 120 (1Ø)
Capacity Input (Btu/h) 200,000/140,000
Length 50’
Fuel NG Only
Fuel Specification Natural gas only.
Operating Mode Two-Stage
Burner Kit # JS-200T-BN
Tube Kit 1 # TM-1030-SX
Tube Kit 2 # TM-0020-SX
Certificates UL Certification.
Transformer 120/24VAC; 20VA
Gas Valve Honeywell 24 Volt. Natural Gas: 3 1/2” W.C. Manifold Propane: 10” W.C. Manifold.
Turbulator Length & Location 40" + 72"
Line Pressure NG/LP Line minimum: 5" W.C NG 11" W.C LP Line Maximum: NG or LP 14" W.C
Flue & Air Vents 5"
Shipping Weight (lbs) 180
Features All burner assemblied powered by hard wired 120V line voltage. Wire hangers allow flecible positioning along the system. Birdscreened combustion air collar, 4" to allow for sealed combustion. Flexible gas connector included.
Warranty Information
5-year tube & burner cup, 2-year components.
!
