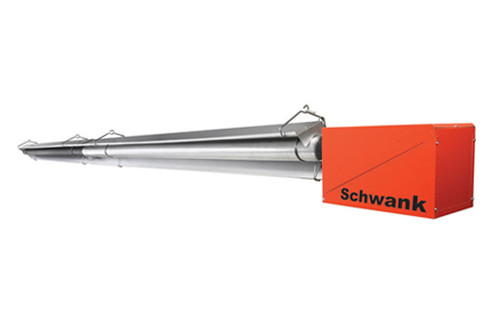

Schwank 2-Stage 'U'-Tube Heater: 200/140,000 Btuh NG; 30 FT; USA
Schwank 2-Stage 'U'-Tube Heater: 200/140,000 Btuh NG; 30 FT; USA

Schwank 2-Stage 'U'-Tube Heater: 200/140,000 Btuh NG; 30 FT; USA

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-SETU-200-30-AN
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

200/140 MBH, 30' U-Tube, Natural Gas.
Specifications
Model SETU
Model Number SETU-200-30-AN
Application for indoor or commercial and industrial applications.
Motor Housing: The clam shell, provides access from the 2 sides, end, and bottom. Head: Incorporates effective ceramic burner head with minimum 835 flame ports.
Voltage (phase) 120 (1Ø)
Capacity Input: High 200,000/140,000
Length 30’U = 2 x 30’
Fuel NG Only
Fuel Specification Natural Gas Only
Operating Mode Two-Stage
Burner Kit # JS-200T-BN
Tube Kit 1 # TM-A120-SU
Tube Kit 2 # TM-0010-SU
Certificates UL Certification.
Transformer 120/24VAC; 20VA
Gas Valve Honeywell 24 Volt. Natural Gas: 3 1/2” W.C. Manifold Propane: 10” W.C. Manifold
Turbulator Length & Location 72"
Line Pressure NG/LP Line minimum: 5" W.C NG 11" W.C LP Line Maximum: NG or LP 14" W.C
Flue & Air Vents 5"
Shipping Weight (lbs) 210
Features 180° turn box (elbow) included in the primary tube Kit. Emissive coating on radiant tubes. Beam hangers allow flexible positioning along with the system. All burner assemblies powered by hard wired 120V line voltage. Birdscreened Combustion...
Warranty Information
5-year tube & burner cup, 2-year components.
!
