Schwank Air Curtain - Epic 14 (480V/3Ø) SCHW-E14-AC-EE036-48
Schwank Air Curtain - Epic 14 (480V/3Ø) SCHW-E14-AC-EE036-48

Schwank Air Curtain - Epic 14 (480V/3Ø) SCHW-E14-AC-EE036-48

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-E14-AC-EE036-48
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

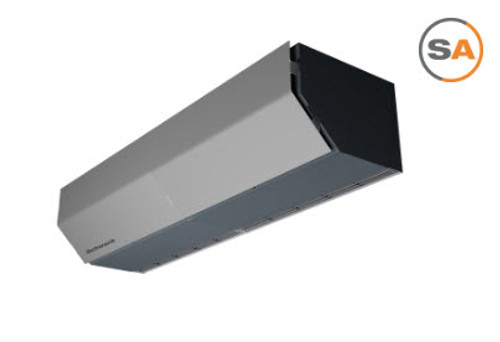

Ambient, Electric Heated Industrial Air Curtain 1738 cfm (480V/3Ø)
Specifications
Model Epic 14
Model Number AC-EE036-48
Voltage (V) 480
PHASE (Ø) 3
Rated Frequency (Hz) 60
Short Model E14
Airflow (cfm) 1738
Avg. Outlet Velocity (fpm) 2349
Motor (kW) 0.98
Motor QTY/HP 1/1
Weight (lb) 135
Heating Capacity (kW) 12
Width (mm) 36
Construction Energy-efficient EC Motors with stepless speed control. Electric Heated 208V/3Ph/60Hz, 480V/3Ph/60Hz, 600V/3Ph/60Hz
Configuration Mounting up to 10ft-16ft. Horizontal above the door. Vertical beside the door
Connection Mounting up to 10ft-16ft. Horizontal above the door. Vertical beside the door
!
