Schwank Air Curtain - Select 10 (208-230V/1Ø) SCHW-SE10-AC-KA72-23
Schwank Air Curtain - Select 10 (208-230V/1Ø) SCHW-SE10-AC-KA72-23

Schwank Air Curtain - Select 10 (208-230V/1Ø) SCHW-SE10-AC-KA72-23

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-SE10-AC-KA72-23
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

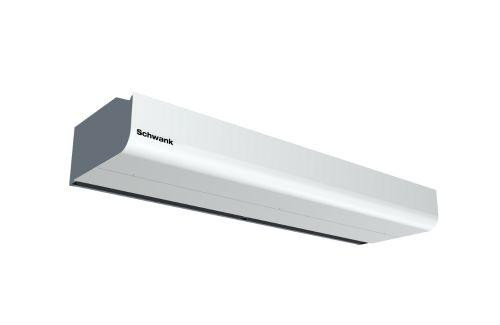

Ambient, Electric Heated Air Curtain 1875 cfm (208-230V/1Ø)
Specifications
Model Select 10
Model Number AC-KA72-23
Voltage (V) 208-230
PHASE (Ø) 1
Short Model SE10
Airflow (cfm) 1875
Motor Power (W) 140
Output (kW) 0
Amperage (PH) 1
Weight (lb) 71
Width (mm) 72"
Construction Energy-efficient EC Motors with variable speed control. Electric Heaters: 208V 1Phase and 208V / 480V / 600V 3Phase 60Hz. Ambient: 208-230V 1Phase 60Hz
Configuration Front-White, RAL 9016, NCS S 0500-N Drille, Real, Side Panel-Grey, RAL 7046. Optional Black Color Available
Connection Wall mount brackets included. Mounting up to 10ft
!
