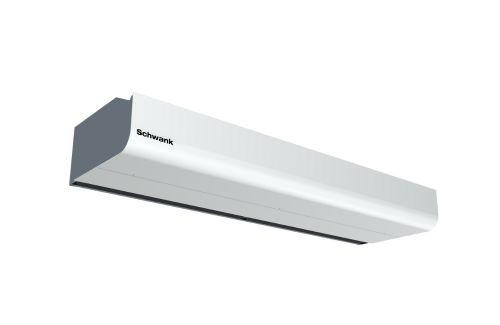

Schwank Air Curtain - Select 10 (208-230V) SCHW-SE10-AC-KA36-20
Schwank Air Curtain - Select 10 (208-230V) SCHW-SE10-AC-KA36-20

Schwank Air Curtain - Select 10 (208-230V) SCHW-SE10-AC-KA36-20

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-SE10-AC-KA36-20
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

Ambient, Electric Heated Air Curtain 859 cfm (208V)
Specifications
Model Select 10
Model Number AC-KA36-20
Voltage (V) 208
Short Model SE10
Airflow (cfm) 859
Motor Power (W) 80
Output (kW) 2.7/4.1
Amperage (PH) 0.6
Weight (lb) 37.5
Width (mm) 36"
Construction Energy-efficient EC Motors with variable speed control. Electric Heaters: 208V 1Phase and 208V / 480V / 600V 3Phase 60Hz. Ambient: 208-230V 1Phase 60Hz
Configuration Front-White, RAL 9016, NCS S 0500-N Drille, Real, Side Panel-Grey, RAL 7046. Optional Black Color Available
Connection Wall mount brackets included. Mounting up to 10ft
!
