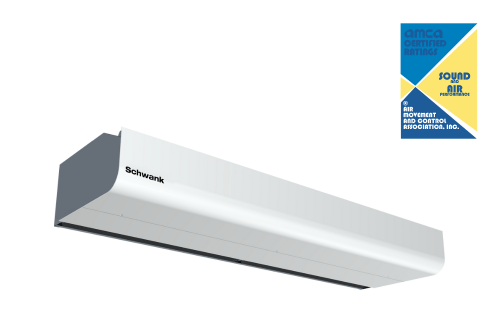

Schwank Air Curtain - SELECT 14 - 1167 W (208 V / 1Ø)
(No reviews)
Write a Review
Write a Review
Schwank
Schwank Air Curtain - SELECT 14 - 1167 W (208 V / 1Ø)
Log in for pricing
SKU:
SCHW-SE14-AC-VW96-23
-
System Design & Layout
Engineering and temperature analysis
-
Equipment Selection Guidance
Get the best product for your facility
-
Maintenance Support
We'll be there if you need us, 24/7/365.
-
Fast Support
Our team is only a phone call away.
Description
Hot water air curtain - 3150 cfm 1167 W 208 V 1Ø
| Model | Select 14 |
| Model Number | AC-VW96-23 |
| Voltage (V) | 208 |
| PHASE (Ø) | 1 |
| Length (in) | 101.96 |
| Height (in) | 11.8 |
| Short Model | SE14 |
| Airflow (cfm) | 3150 |
| Outlet Velocity | 2328 |
| Outlet Velocity Uniformity (%) | 86 |
| Max Velocity at Nozzle (fpm) | 2763 |
| Nozzle Width x Depth | 97.2 x 2.8 |
| Motor Power (W) | 1167 |
| Motor Amperage (A) | 7 |
| Sound Power (dBA) | 81 |
| Sound Pressure (dBA) | 63 |
| Weight (lb) | 212 |
| Water Flow (GPH) | 10.5 |
| Configuration | Front - white, RAL 9016, NCS S 0500-N. Grille, Real, Side Panel - Grey, RAL 7064 |
| Connection | Intended for indoor horizontal and vertical mountain above building/beside doorway openings for heights up to 14 ft. |
