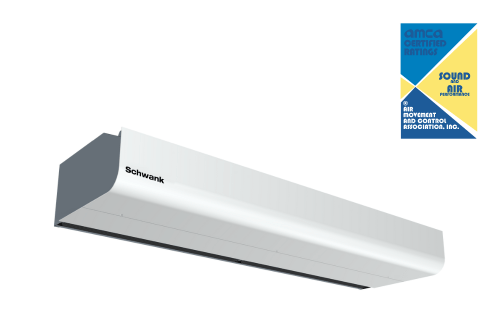

Schwank Air Curtain - SELECT 14 - 1173 W (208 V / 1Ø)
Schwank Air Curtain - SELECT 14 - 1173 W (208 V / 1Ø)

Schwank Air Curtain - SELECT 14 - 1173 W (208 V / 1Ø)

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-SE14-AC-VA96-23
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

Ambient air curtain - 3300 cfm 1173 W 208 V 1Ø
Specifications
Model Select 14
Model Number AC-VA96-23
Voltage (V) 208
PHASE (Ø) 1
Length (in) 101.96
Height (in) 11.8
Short Model SE14
Airflow (cfm) 3300
Outlet Velocity 2700
Outlet Velocity Uniformity (%) 88
Max Velocity at Nozzle (fpm) 3094
Nozzle Width x Depth 97.2 x 2.8
Motor Power (W) 1173
Motor Amperage (A) 7.5
Sound Power (dBA) 83
Sound Pressure (dBA) 65
Weight (lb) 104
Configuration Front - white, RAL 9016, NCS S 0500-N. Grille, Real, Side Panel - Grey, RAL 7058
Connection Intended for indoor horizontal and vertical mountain above building/beside doorway openings for heights up to 14 ft.
!
