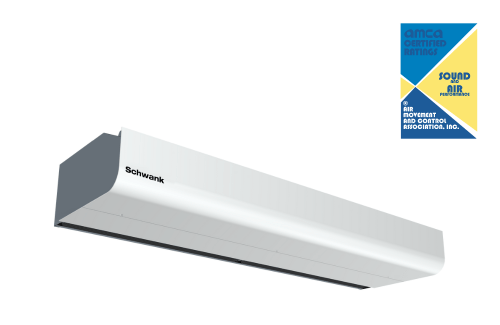

Schwank Air Curtain - SELECT 14 - 500 W (600 V / 3Ø)
Schwank Air Curtain - SELECT 14 - 500 W (600 V / 3Ø)

Schwank Air Curtain - SELECT 14 - 500 W (600 V / 3Ø)

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-SE14-AC-VE36-60
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

Electric heated air curtain - 1400 cfm 500 W 600 V 3Ø
Specifications
Model Select 14
Model Number AC-VE36-60
Voltage (V) 600
PHASE (Ø) 3
Length (in) 41.56
Height (in) 11.8
Short Model SE14
Airflow (cfm) 1400
Outlet Velocity 2736
Outlet Velocity Uniformity (%) 89
Max Velocity at Nozzle (fpm) 3133
Nozzle Width x Depth 37.8 x 2.8
Motor Power (W) 500
Motor Amperage (A) 3
Sound Power (dBA) 80
Sound Pressure (dBA) 62
Weight (lb) 104
Configuration Front - white, RAL 9016, NCS S 0500-N. Grille, Real, Side Panel - Grey, RAL 7049
Connection Intended for indoor horizontal and vertical mountain above building/beside doorway openings for heights up to 14 ft.
!
