Schwank SuperTube SST - Modulating 80 MBH; 10' U-Tube System; 120V/1Ø
Schwank SuperTube SST - Modulating 80 MBH; 10' U-Tube System; 120V/1Ø

Schwank SuperTube SST - Modulating 80 MBH; 10' U-Tube System; 120V/1Ø

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-SST-MU08-10
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

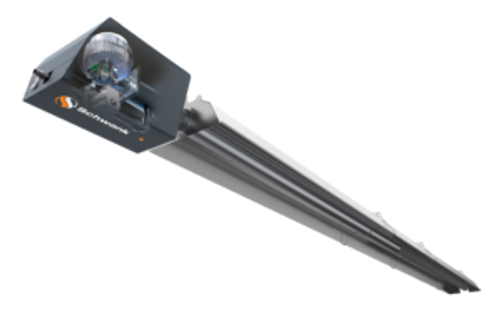

80 MBH modulating natural gas infrared tube heater, 10' U-tube system, 120V/1Ø
Specifications
Model SST
Model Number SST-MU08-10
Motor 24VDC power for the high-efficiency ECM blower
Voltage (phase) 120V (1Ø)
Capacity Input (Btu/h) 80000
Length 10'
Fuel NG
Operating Mode Modulating
Tube Kit 1 # TU-P10AH-SST
NG to LP Conversion Kit # JS-0554-AL
Certificates UL Certification
Transformer 120/24VAC; 20VA
Gas Valve Natural Gas: 3.5” W.C. Manifold Up To 205,000 Mbtuh & For 225,000 & 250,000 4.2” W.C. Manifold. Modulating Gas Valve combined with the EC Motor provides True Modulation.
Turbulator Length & Location 1x36" in 3rd tube
Line Pressure NG/LP 5" / 11"
Combustion Air Duct Diameter 4"
Flue & Air Vents 4" / 4"
Shipping Weight (lbs) 111
Features U-Tube concentrates heat output. 180° turn box included in the primary tube kit. High efficiency ECM blower. Optimized single reflector. Includes power cord with plug, and factory mounted igniter. Birdscreened combustion air collar. Emissiv...
Warranty Information
10-year tube, 10-year burner cup, 3-year components
!
