Schwank SuperTube SST - Two-Stage 55/80 MBH; 20' Straight system; 120V/1Ø
Schwank SuperTube SST - Two-Stage 55/80 MBH; 20' Straight system; 120V/1Ø

Schwank SuperTube SST - Two-Stage 55/80 MBH; 20' Straight system; 120V/1Ø

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-SST-TB08-20-AN
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

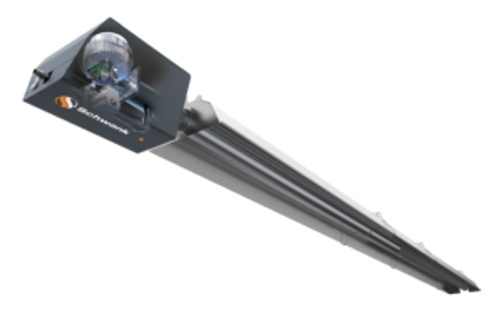

55/80 MBH two-stage natural gas infrared tube heater, 20' straight system, 120V/1Ø
Specifications
Model SST
Model Number SST-TB08-20-AN
Motor 24VDC power for the high-efficiency ECM blower
Voltage (phase) 120V (1Ø)
Capacity Input (Btu/h) 55,000/80,000
Length 20'
Fuel NG
Operating Mode Two-Stage
Burner Kit # JT-BT08-AN
Tube Kit 1 # TD-P2AH-ST
Tube Kit 2 # -
NG to LP Conversion Kit # JS-0554-NL
Certificates UL Certification
Transformer 120/24VAC; 20VA
Gas Valve Natural Gas: 3.5” W.C. Manifold Up To 205,000 Mbtuh & For 225,000 & 250,000 4.2” W.C. Manifold.
Turbulator Length & Location 3x36" in 2nd tube
Line Pressure NG/LP 5" / 11"
Combustion Air Duct Diameter 4"
Flue & Air Vents 4" / 4"
Shipping Weight (lbs) 111
Features Optimized single reflector. Includes power cord with plug, and factory mounted igniter. Swing down hinged clam-shell design for easy access with latching system for easy service. Emissive coated radiant tubes. Flexible gas connector included.
Warranty Information
10-year tube, 10-year burner cup, 3-year components
!
