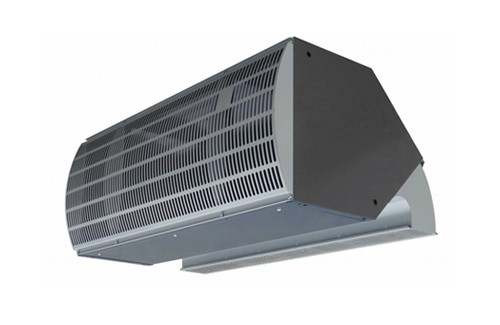

Schwank Water Heated Air Curtain, 2 Row Heating Coil - GRAND 18 - (99")(230 V / 1Ø / 60Hz)
Schwank Water Heated Air Curtain, 2 Row Heating Coil - GRAND 18 - (99")(230 V / 1Ø / 60Hz)

Schwank Water Heated Air Curtain, 2 Row Heating Coil - GRAND 18 - (99")(230 V / 1Ø / 60Hz)

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-G18-AC-IW99-23-ST-2
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

Commercial Hot Water Heated Air Curtain, 2 Row Heating Coil
Specifications
MOTOR HP 1.17
Model Grand 18
Model Number AC-IW99-23-ST-2
Motor FLA (A) 5
Voltage (V) 230
PHASE (Ø) 1
Rated Frequency (Hz) 60
CERTIFICATIONS 11
Short Model G18
Airflow (cfm) 6610
Sound Pressure (dBA) 62
Weight (lb) 331
Heating Capacity (MBH) 229.3
Discharge Air Temp (°F) 67.2
Discharge Air Temp (°C) 94.4
Water Flow (USGPH) 636
Water Pressure Drop with 2 & 3-Port Valve (psi) [kPa] 10.6
Construction 99
Configuration 16ft-26ft. Horizontal (above) door. Vertical (beside) door.
Width (mm) 99
Connection 16ft-26ft. Horizontal (above) door. Vertical (beside) door.
!
