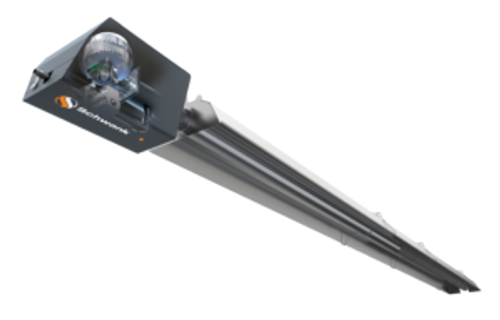

Shwank SuperTube SST - Modulating 155/100 MBH; 40' Straight system; 120V/1Ø
Shwank SuperTube SST - Modulating 155/100 MBH; 40' Straight system; 120V/1Ø

Shwank SuperTube SST - Modulating 155/100 MBH; 40' Straight system; 120V/1Ø

(No reviews) Write a Review

Log in for pricing

SKU: SCHW-SST-MB15-40-AN
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

155/100 MBH modulating natural gas infrared tube heater, 40' straight system, 120V/1Ø
Specifications
Model SST
Model Number SST-MB15-40-AN
Motor 24VDC power for the high-efficiency ECM blower
Voltage (phase) 120V (1Ø)
Capacity Input (Btu/h) 155/100,000
Length 40’
Fuel NG
Operating Mode Modulating
Burner Kit # JT-BM15-AN
Tube Kit 1 # TD-P4AH-M-X
Tube Kit 2 # -
NG to LP Conversion Kit # JS-0554-EL
Certificates UL Certification
Transformer 120/24VAC; 20VA
Gas Valve Natural Gas: 3.5” W.C. Manifold Up To 205,000 Mbtuh & For 225,000 & 250,000 4.2” W.C. Manifold. Modulating Gas Valve combined with the EC Motor provides True Modulation.
Turbulator Length & Location 1x36" in 3rd tube
Line Pressure NG/LP 5" / 11"
Combustion Air Duct Diameter 4"
Flue & Air Vents 4" / 4"
Shipping Weight (lbs) 197
Features Modulating thermostat ready. High efficiency ECM blower + modulating gas valve = true modulation. Includes power cord with plug, and factory mounted igniter. Birdscreened combustion air collar. Emissive coating radiant tubes. Flexible gas c...
Warranty Information
10-year tube, 10-year burner cup, 3-year components
!
