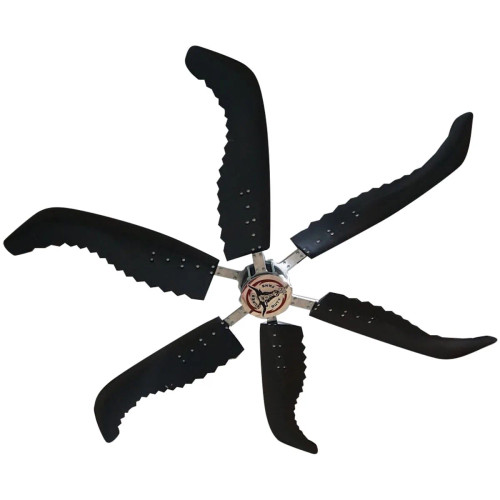

Super Duty Fans SD10HO - 750W (208-240 V / 8.0 A / 1Ø)
Super Duty Fans SD10HO - 750W (208-240 V / 8.0 A / 1Ø)

Super Duty Fans SD10HO - 750W (208-240 V / 8.0 A / 1Ø)

(No reviews) Write a Review

Log in for pricing

SKU: SDF-SD10HO-208-240-1
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

High-Output 10' HVLS fan, 750 Watt motor (208-240 V / 1Ø / 8.0 A)
Specifications
MOTOR HP 1
Model 10HO
Model Number SD10HO-208-240-1
Diameter (ft) 10
Voltage (V) 208-240
PHASE (Ø) 1
WATTS (W) 750
Weight (lbs) 124
AIRFOIL MATERIAL Injection Molded Poly Resin Fiber Blend
AIRFOIL WIDTH (IN) 6"-11"
NUMBER OF AIRFOILS 6
MAX SPEED (RPM) 150
MAX EFFECTED AREA (SQFT) 13250
SOUND LEVEL DBA @ MAX SPEED
AIR VOLUME (CFM) 81000
MOTOR TYPE Permanent Magnet Synchronous Motor (PNSM)
HORSEPOWER 1
OPERATING TEMP RANGE (°F) 32-140
OPERATING TEMP RANGE (°C) 0-60
RADIUS (FT) 65
MAX TORQUE (FT/LB) 35
GUY WIRE SYSTEM Each fan mount has 4 loops to accept a guy wire system. Optional on the 3 blade fans. Included on all HO models. Wires are 9’ long.
MOUNTING OPTIONS I-Beam, Glulam, Unistrut or Perlin
DOWNROD LENGTH (FT) 3 - 5.5’
EXTENSION LENGTH Downrods avaiable in 4” increments: 2’ min. to 10’ max. Inquire above 5.5’.
CONTROLLER Variable Frequency Drive
FIRE & SPRINKLER NFPA 13 & NFPA 72 Compliant
CERTIFICATIONS Drive: UL-Certified to ANSUI/UL 507 & CSA C22.2 NO. 113, IEC 61800-3 & CE
WASH DOWN DUTY RATING Damp Rated
SAFETY FEATURES Reinforced Blade Attachment System, Safety Retention Cable, Motor & Drive Protections, Fire Relay, Guy Wire System
!
