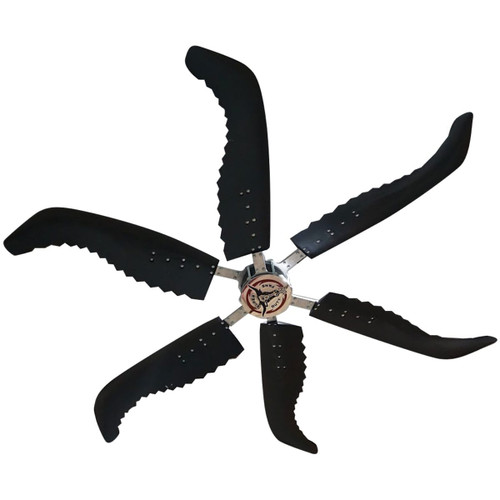

Super Duty Fans SD15HO 1100W - (208-240V/10A/1Ø)
Super Duty Fans SD15HO 1100W - (208-240V/10A/1Ø)

Super Duty Fans SD15HO 1100W - (208-240V/10A/1Ø)

(No reviews) Write a Review

Log in for pricing

SKU: SDF-SD15HO-208-240-1
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

High Output 15' HVLS Fan 1100W (208-240V/1Ø)
Specifications
Model SD15HO
Model Number SD15HO-208-240-1
Diameter (ft) 15
Voltage (V) 208-240
PHASE (Ø) 1
WATTS (W) 1100
Weight (lbs) 141
MAX AMP DRAW (A) 10
AIRFOIL MATERIAL Injection Molded Poly Resin Fiber Blend
AIRFOIL WIDTH (IN) 7"-13"
NUMBER OF AIRFOILS 6
MAX SPEED (RPM) 120
RECOMMENDED SPACING (FT) 90
MAX EFFECTED AREA (SQFT) 17650
SOUND LEVEL DBA @ MAX SPEED
AIR VOLUME (CFM) 148000
MOTOR TYPE Permanent Magnet Synchronous Motor (PMSM)
HORSEPOWER 1.75
OPERATING TEMP RANGE (°F) 32-140
OPERATING TEMP RANGE (°C) 0-60
RADIUS (FT) 75
MAX TORQUE (FT/LB) 44
GUY WIRE SYSTEM Each fan mount has 4 loops to accept a guy wire system. Optional on the 3 blade fans. Included on all HO models. Wires are 9’ long.
MOUNTING OPTIONS I-Beam, Glulam, Unistrut or Perlin
DOWNROD LENGTH (FT) 3-5.5
EXTENSION LENGTH Downrods avaiable in 4” increments: 2’ min. to 10’ max. Inquire above 5.5’.
CONTROLLER Variable Frequency Drive
FIRE & SPRINKLER NFPA 13 & NFPA 72 Compliant
CERTIFICATIONS Drive: UL-Certified to ANSUI/UL 507 & CSA C22.2 NO. 113, IEC 61800-3 & CE
WASH DOWN DUTY RATING Damp Rated
SAFETY FEATURES Reinforced Blade Attachment System, Safety Retention Cable, Motor & Drive, Protections, Fire Relay, Guy Wire System
!
