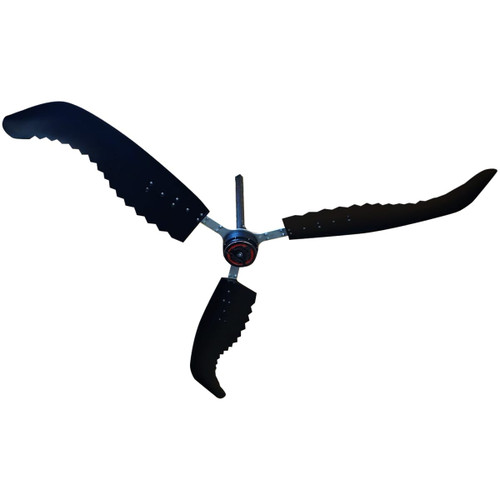

Super Duty Fans SD7 400W - (110-120V/5.8A/1Ø)
Super Duty Fans SD7 400W - (110-120V/5.8A/1Ø)

Super Duty Fans SD7 400W - (110-120V/5.8A/1Ø)

(No reviews) Write a Review

Log in for pricing

SKU: SDF-SD7-110-120
Download Spec Sheet PDF

Ask An Expert

Bobby Caffrey

Call (816) 643-3875 >

Send Email >

  • System Design & Layout

    Engineering and temperature analysis

  • Equipment Selection Guidance

    Get the best product for your facility

  • Maintenance Support

    We'll be there if you need us, 24/7/365.

  • Fast Support

    Our team is only a phone call away.

Description

Compact 7' HVLS Fan 400W motor (110-120V/1Ø)
Specifications
Model SD7
Model Number SD7-110-120
Diameter (ft) 7
Voltage (V) 110-120
PHASE (Ø) 1
WATTS (W) 400
Weight (lbs) 77
MAX AMP DRAW (A) 5.8
AIRFOIL MATERIAL Injection Molded Poly Resin Fiber Blend
AIRFOIL WIDTH (IN) 5"-8"
NUMBER OF AIRFOILS 3
MAX SPEED (RPM) 150
RECOMMENDED SPACING (FT) 30
MAX EFFECTED AREA (SQFT) 9500
SOUND LEVEL DBA @ MAX SPEED
AIR VOLUME (CFM) 31000
MOTOR TYPE Permanent Magnet Synchronous Motor (PMSM)
HORSEPOWER 0.75
OPERATING TEMP RANGE (°F) 32-140
OPERATING TEMP RANGE (°C) 0-60
RADIUS (FT) 45
MAX TORQUE (FT/LB) 18
GUY WIRE SYSTEM Each fan mount has 4 loops to accept a guy wire system. Optional on the 3 blade fans. Included on all HO models. Wires are 9’ long.
MOUNTING OPTIONS I-Beam, Glulam, Unistrut or Perlin
DOWNROD LENGTH (FT) 2-3.5
EXTENSION LENGTH Downrods avaiable in 4” increments: 2’ min. to 10’ max. Inquire above 5.5’.
CONTROLLER Variable Frequency Drive
FIRE & SPRINKLER NFPA 13 & NFPA 72 Compliant
CERTIFICATIONS Drive: UL-Certified to ANSUI/UL 507 & CSA C22.2 NO. 113, IEC 61800-3 & CE
WASH DOWN DUTY RATING Damp Rated
SAFETY FEATURES Reinforced Blade Attachment System, Safety Retention Cable, Motor & Drive, Protections, Fire Relay, Guy Wire System
!
